SF-1610 Series SEAM Sealed kHz Crystals | TKD

SF-1610 Series SEAM Sealed kHz Crystals | TKD

Specification of SF-1610

Technical SpecificationsSF-1610/SF-2012/SF-3215
Output Frequency32.768kHz
Frequency Tolerance (at 25°C)±20ppm (Available)
Operating Temperature Range-40°C~+85°C (Available)
Shunt Capacitance (C₀)2.0pF Max
Drive Level0.1μW (Typical Value)
Load Capacitance6pF, 7pF, 9pF, 12.5pF (Available)
Aging Rate (per year, at 25°C)±3ppm per year
Storage Temperature Range-55°C~+125°C
Turnover Temperature25±5°C
Temperature Coefficient-0.03±0.01 ppm/°C²
Insulation Resistance500MΩ (Min) at 100V


Frequency
Operating Temperature RangeESR
32.768kHzSF-3215-40~+85°C70kΩ((Available)
32.768kHzSF-3215 LOW ESR-40~+85°C45kΩ (Available)
32.768kHzSF-2012-40~+85°C80kΩ (Available)
32.768kHzSF-1610-40~+85°C90kΩ (Available)

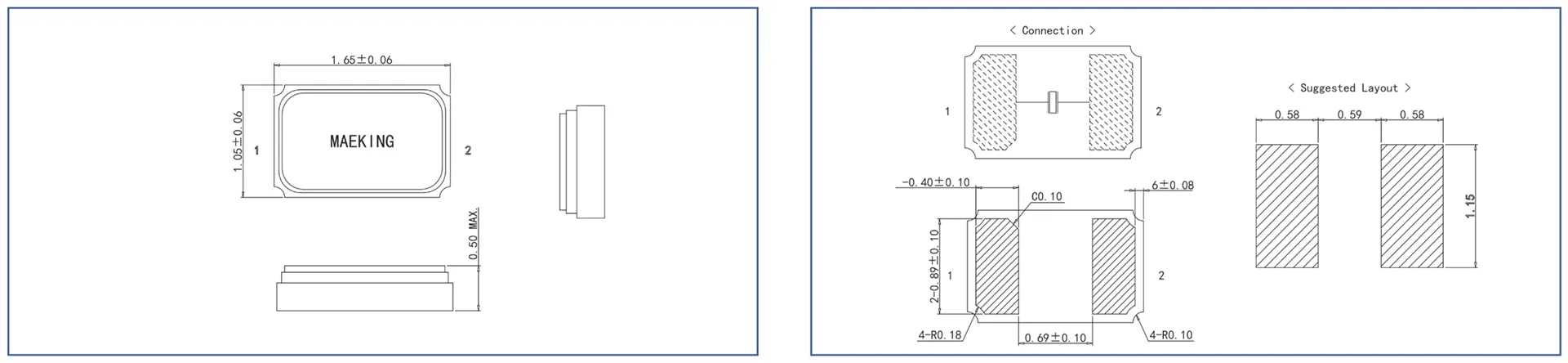

Dimensions of SF-1610

Dimensions of SF-1610

SEAM Sealed kHz Crystals SF-1610 Series
