49SMD 49 Series MHz Crystal | TKD

The TKD 49SMD series is a surface-mount MHz crystal in a 49SMD package, combining the proven HC-49 performance with SMT assembly. It serves microcontrollers, networking equipment, industrial controls and consumer electronics with high reliability.

Specification of 49SMD

Technical Specifications		Symbol	Min.	Typ.	Max.	Unit	Condition
Nominal Frequency	49S		12.000000MHz
Nominal Frequency	49SMD		8.000000MHz
Operating Temperature Range		Topt	-20	-	70	℃
Storage Temperature Range		Tstg	-40	-	85	℃
Load Capacitance	49S	CL	-	20	-	pF
Load Capacitance	49SMD	CL	-	7	-	pF
Drive Level		DL	0.1	-	100	μW
Tolerance		dF/Fo	-20	-	20	ppm	Refer to Center Frequency@25±3℃
Stability Over Temperature		dF/F25	-30	-	30	ppm	Refer to Operating Temperature @-20~+70℃
Aging		dF/F25	-5	-	5	ppm	Per Year
Equivalent Series Resistance	49S	ESR	-	-	40	Ω	@Series
Equivalent Series Resistance	49SMD	ESR	-	-	80	Ω	@Series
Shunt Capacitance		C0	-	-	7	pF
Insulation Resistance		IR	500	-	-	MΩ	@DC 100 Volt

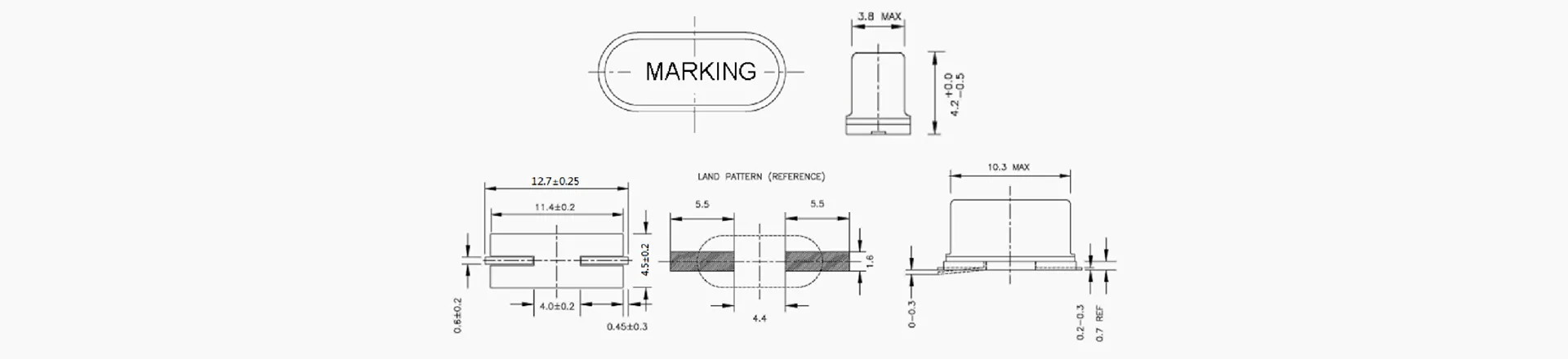

Dimensions of 49SMD

dimensions of 49smd

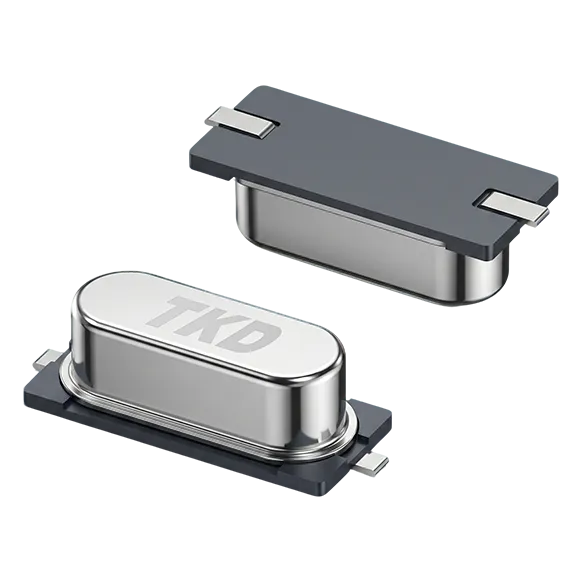

49 Series MHz Crystals 49SMD Series

CS16M0036864JDBAD1

3.6864MHz 12pF ±20ppm

Know More 

CS16M0036864NDCAE1

3.6864MHz 16pF ±20ppm

Know More 

CS16M0036864PDCAD1

3.6864MHz 18pF ±20ppm

Know More 

CS16M0036864PFCAD1

3.6864MHz 18pF ±30ppm

Know More 

CS16M0036864RDBAD1

3.6864MHz 20pF ±20ppm

Know More 

CS16M0036864bFBAE1

3.6864MHz 30pF ±30ppm

Know More 

CS16M003579545MDBAD1

3.579545MHz 15pF ±20ppm

Know More 

CS16M003579545NDCAE1

3.579545MHz 16pF ±20ppm

Know More 

CS16M003579545NFBAD1

3.579545MHz 16pF ±30ppm

Know More 

CS16M003579545PDCAD1

3.579545MHz 18pF ±20ppm

Know More 

CS16M004000HDCAD1

4.0MHz 10pF ±20ppm

Know More 

CS16M004000JDCAD1

4.0MHz 12pF ±20ppm

Know More 

