SF-8038 Plastic-Package kHz Crystal | TKD

Specification of SF-8038

Technical Specifications	SF-8038
Output Frequency	32.768kHz
Frequency Tolerance (at 25°C)	±20ppm(Available)
Operating Temperature Range	-40°C~+85°C
Shunt Capacitance (C₀)	2.0pF Max.
Drive Level	1.0µw typical
Load Capacitance	Series, 7pF, 9pF, 12.5pF(Available)
Aging Rate (per year, at 25°C)	±5 ppm First year Max.
Storage Temperature Range	-55~+125°C
Turnover Temperature	25±5°C
Temperature Coefficient	(-0.036±0.005) ppm/°C²
Insulation Resistance	500MΩ Min.

Frequency	ESR
32.768kHz	50kΩ MAX.

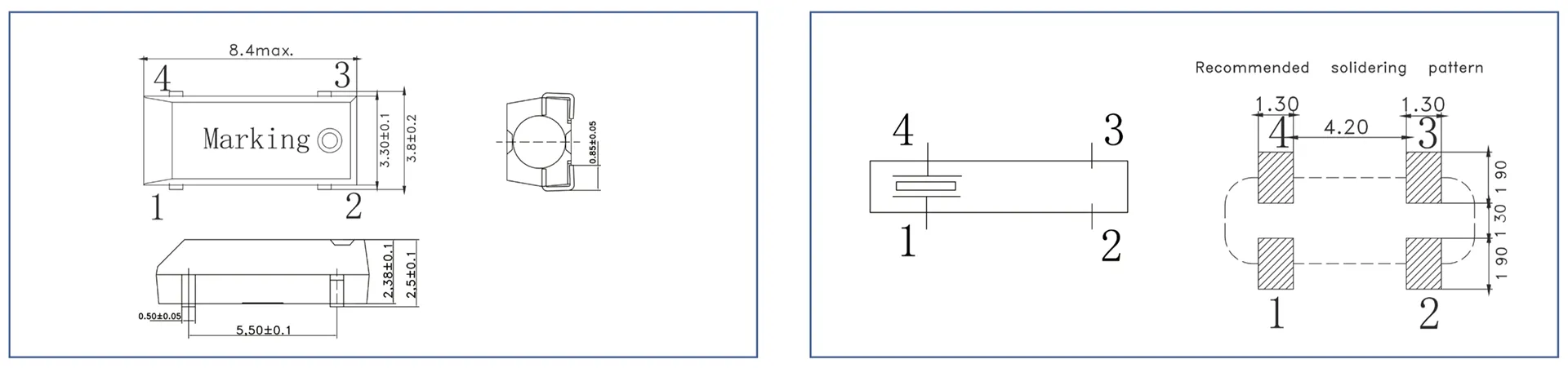

Dimensions of SF-8038

Dimensions of SF-8038

Plastic Package kHz Crystals SF-8038 Series

CS13K032768ADCBGE

32.768kHz 12.5pF ±20PPM -40~85℃

Know More 

CS13K032768ACCBGE

32.768kHz 12.5pF 15ppm -40~85℃

Know More 

CS13K032768ABCBGE

32.768kHz 12.5pF ±10ppm -40~85℃

Know More 

CS13K032768DDCBGE

32.768kHz 6pF ±20PPM -40~85℃

Know More 

CS13K032768DCCBGE

32.768kHz 6pF 15ppm -40~85℃

Know More 

CS13K032768DBCBGE

32.768kHz 6pF ±10ppm -40~85℃

Know More 

CS13K032768EDCBGE

32.768kHz 7pF ±20PPM -40~85℃

Know More 

CS13K032768GDCBGE

32.768kHz 9pF ±20PPM -40~85℃

Know More 

