SF-2012C Automotive-Grade kHz Crystal | TKD

The TKD SF-2012C series is an automotive-grade seam-sealed tuning-fork crystal in a 2.0 × 1.2 mm package, AEC-Q200 qualified for vehicle applications. It provides a stable 32.768 kHz reference for body control, instrument clusters, keyless entry and infotainment.

Specification of SF-2012C

Technical Specifications	SF-2012C / SF-3215C
Output Frequency	32.768kHz
Frequency Tolerance (at 25°C)	±20ppm (Available)
Operating Temperature Range	-40~+125°C
Shunt Capacitance (C₀)	2.0pF Max.
Drive Level	0.1μW Typical
Load Capacitance	Series, 7pF, 9pF, 12.5pF(Available)
Aging Rate (per year, at 25°C)	±3ppm First Year Max
Storage Temperature Range	-55~+125°C
Insulation Resistance	500MΩ Min.

Frequency	ESR
32.768kHz	50kΩ Max.

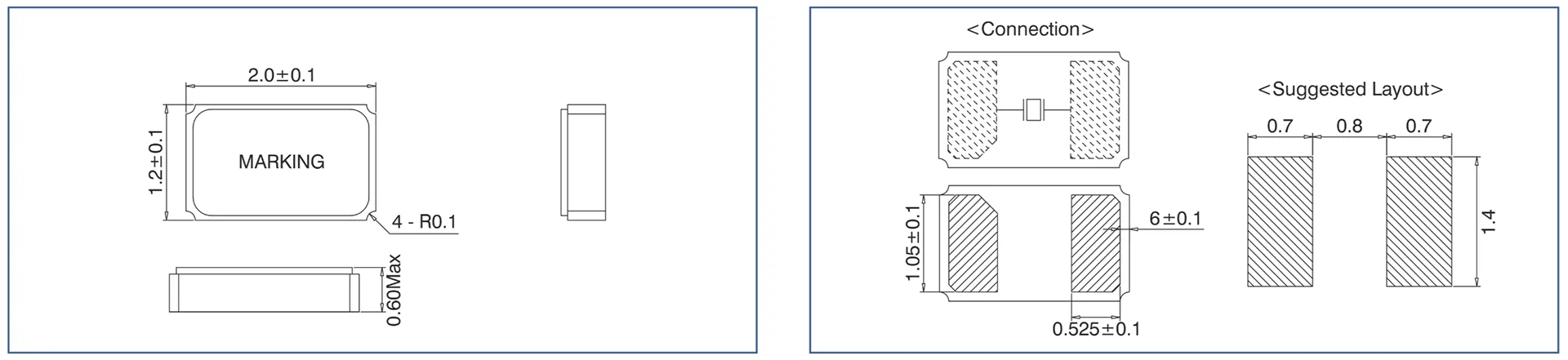

Dimensions of SF-2012C

Dimensions of SF-2012C

Automotive Grade kHz Crystals SF-2012C Series

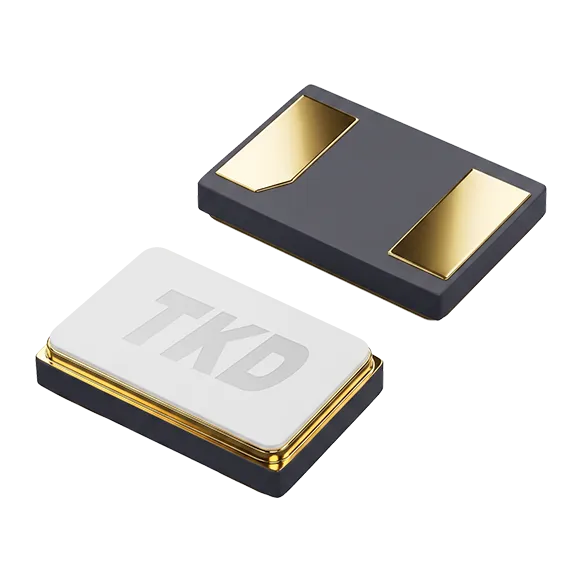

SF20CK32768D91T001

32.768kHz 9pF 20ppm -40~85℃

Know More 

SF20CK32768D91T002

32.768kHz 9pF 20ppm -40~125℃

Know More 

SF20CK32768D71T004

32.768kHz 7pF 20ppm -40~85℃

Know More 

SF20CK32768D31T001

32.768kHz 12.5pF 20ppm -40~105℃

Know More 

SF20CK32768D31T002

32.768kHz 12.5pF 20ppm -40~125℃

Know More 

SF20CK32768D31T003

32.768kHz 12.5pF 20ppm -40~105℃

Know More 

SF20CK32768D31T004

32.768kHz 12.5pF 20ppm -40~125℃

Know More 

SF20CK32768D31T005

32.768kHz 12.5pF 20ppm -40~85℃

Know More 

SF20CK32768D31T007

32.768kHz 12.5pF 20ppm -40~85℃

Know More 

SF20CK32768D31TZ01

32.768kHz 12.5pF 20ppm -40~125℃

Know More 

SF20CK32768D71T001

32.768kHz 7pF 20ppm -40~105℃

Know More 

SF20CK32768F71T001

32.768kHz 7pF 30ppm -40~125℃

Know More 

