Name: SX-1008
Brand: TKD Science and Technology Co., Ltd.

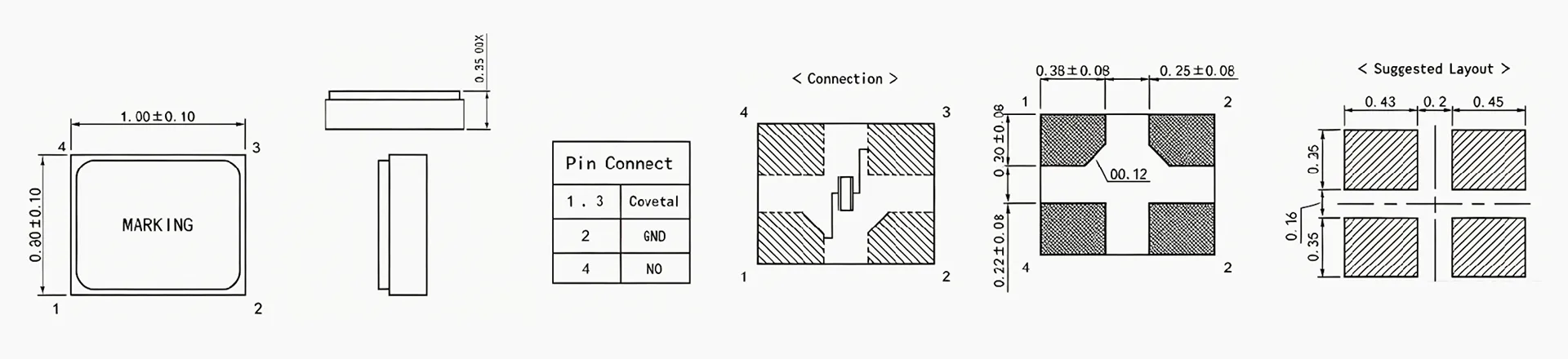

The TKD SX-1008 series is a seam-sealed MHz crystal in an ultra-compact 1.0 × 0.8 mm package, delivering stable frequency for space-constrained designs. It is ideal for wearables, IoT modules, and compact wireless and portable devices.

Specification of SX-1008

Technical Specifications		SX-1008/SX-1210/SX-1612/SX-2016/SX-2520/SX-3225
Output Frequency	SX-1008	37.4~96MHz
	SX-1210	24~156.25MHz
	SX-1612	24~96MHz
	SX-2016	16~96MHz
	SX-2520	12~54MHz
	SX-3225	8~54MHz
Frequency Tolerance (at 25℃)		±10ppm (Available)
Frequency Stability within Operating Temp. Range	SX-1008/SX-1210/SX-2016/SX-2520/SX-3225	±10ppm
Frequency Stability within Operating Temp. Range	SX-1612	±10ppm, ±15ppm (Available)
Operating Temperature Range		-40~+85℃ (Available)
Shunt Capacitance (C₀)		3.0pF Max.
Drive Level		100μW (Typical)
Load Capacitance		Series, 6pF, 8pF, 10pF, 12pF, 16pF (Available)
Aging Rate (per year, at 25℃)	SX-1008	±2 ppm/year Max.
Aging Rate (per year, at 25℃)	SX-1210/SX-1612/SX-2016/SX-2520/SX-3225	±3 ppm/year Max.
Storage Temperature Range	SX-1008	-40~+85℃
Storage Temperature Range	SX-1210/SX-1612/SX-2016/SX-2520/SX-3225	-40~+125℃
