SF-3215C Series Automotive Grade kHz Crystals | TKD

SF-3215C Series Automotive Grade kHz Crystals | TKD

The TKD SF-3215C series is an automotive-grade seam-sealed tuning-fork crystal in a 3.2 × 1.5 mm package, qualified to AEC-Q200 for demanding vehicle environments. It delivers a stable 32.768 kHz reference for ADAS, telematics, body electronics and infotainment systems.

Specification of SF-3215C

Technical SpecificationsSF-2012C / SF-3215C
Output Frequency32.768kHz
Frequency Tolerance (at 25°C)±20ppm (Available)
Operating Temperature Range-40~+125°C
Shunt Capacitance (C₀)2.0pF Max.
Drive Level0.1μW Typical
Load CapacitanceSeries, 7pF, 9pF, 12.5pF(Available)
Aging Rate (per year, at 25°C)±3ppm First Year Max
Storage Temperature Range-55~+125°C
Insulation Resistance500MΩ Min.


FrequencyESR
32.768kHz50kΩ Max.

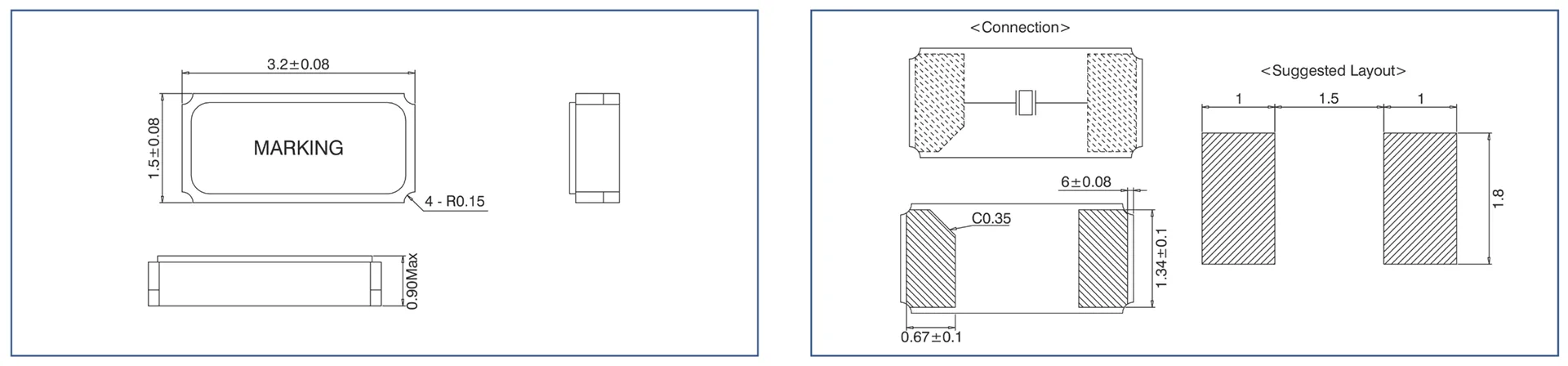

Dimensions of SF-3215C

Dimensions of SF-3215C

Automotive Grade kHz Crystals SF-3215C Series
