SF-7015 Plastic-Package kHz Crystal | TKD

The TKD SF-7015 series is a plastic-package tuning-fork crystal in a 7.0 × 1.5 mm form, providing a stable 32.768 kHz reference with a low profile. It is suited to real-time clocks in meters, wearables, IoT devices and consumer electronics.

Specification of SF-7015

Technical Specifications	SF-7015
Output Frequency	32.768kHz
Frequency Tolerance (at 25℃)	±20ppm ( Available)
Operating Temperature Range	-40℃~+85℃
Shunt Capacitance (C₀)	1.0pF Max.
Drive Level	1.0µw typical
Load Capacitance	Series, 7pF, 9pF, 12.5pF (Available)
Aging Rate (per year, at 25℃)	±5 ppm First year Max.
Storage Temperature Range	-55~+125℃
Turnover Temperature	25±5℃
Temperature Coefficient	(-0.036±0.005) ppm/℃²
Insulation Resistance	500MΩ Min.

Frequency	ESR
32.768kHz	65kΩ Max.

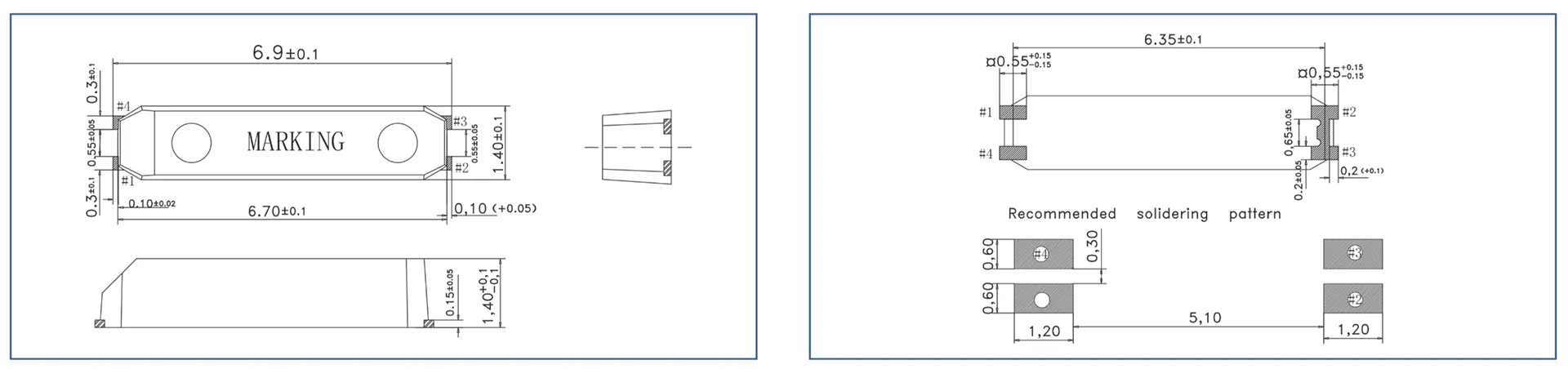

Dimensions of SF-7015

Dimensions of SF-7015

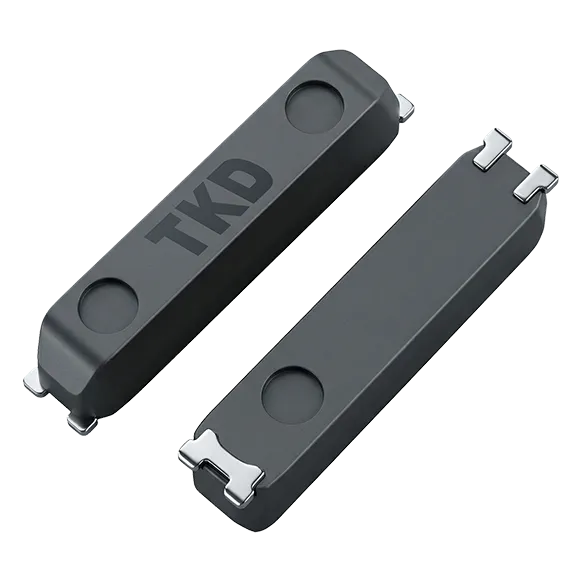

Plastic Package kHz Crystals SF-7015 Series

CS12K032768ADCBGE

32.768kHz 12.5pF ±20PPM -40~85℃

Know More 

CS12K032768ACCBGE

32.768kHz 12.5pF 15ppm -40~85℃

Know More 

CS12K032768ABCBGE

32.768kHz 12.5pF ±10ppm -40~85℃

Know More 

CS12K032768DDCBGE

32.768kHz 6pF ±20PPM -40~85℃

Know More 

CS12K032768EDCBGE

32.768kHz 7pF ±20PPM -40~85℃

Know More 

CS12K032768GDCBGE

32.768kHz 9pF ±20PPM -40~85℃

Know More 

