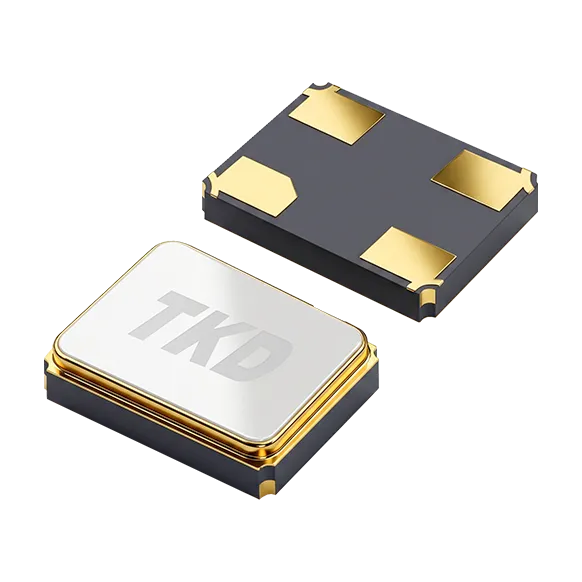

SX-2520 SEAM-Sealed SMD MHz Crystal | TKD

The TKD SX-2520 series is a seam-sealed MHz crystal in a 2.5 × 2.0 mm package, offering excellent frequency stability and reliability. It is widely used in MCU clocks, networking equipment, industrial controls and consumer electronics.

Specification of SX-2520

Technical Specifications		SX-1008/SX-1210/SX-1612/SX-2016/SX-2520/SX-3225
Output Frequency	SX-1008	37.4~96MHz
	SX-1210	24~156.25MHz
	SX-1612	24~96MHz
	SX-2016	16~96MHz
	SX-2520	12~54MHz
	SX-3225	8~54MHz
Frequency Tolerance (at 25℃)		±10ppm (Available)
Frequency Stability within Operating Temp. Range	SX-1008/SX-1210/SX-2016/SX-2520/SX-3225	±10ppm
Frequency Stability within Operating Temp. Range	SX-1612	±10ppm, ±15ppm (Available)
Operating Temperature Range		-40~+85℃ (Available)
Shunt Capacitance (C₀)		3.0pF Max.
Drive Level		100μW (Typical)
Load Capacitance		Series, 6pF, 8pF, 10pF, 12pF, 16pF (Available)
Aging Rate (per year, at 25℃)	SX-1008	±2 ppm/year Max.
Aging Rate (per year, at 25℃)	SX-1210/SX-1612/SX-2016/SX-2520/SX-3225	±3 ppm/year Max.
Storage Temperature Range	SX-1008	-40~+85℃
Storage Temperature Range	SX-1210/SX-1612/SX-2016/SX-2520/SX-3225	-40~+125℃

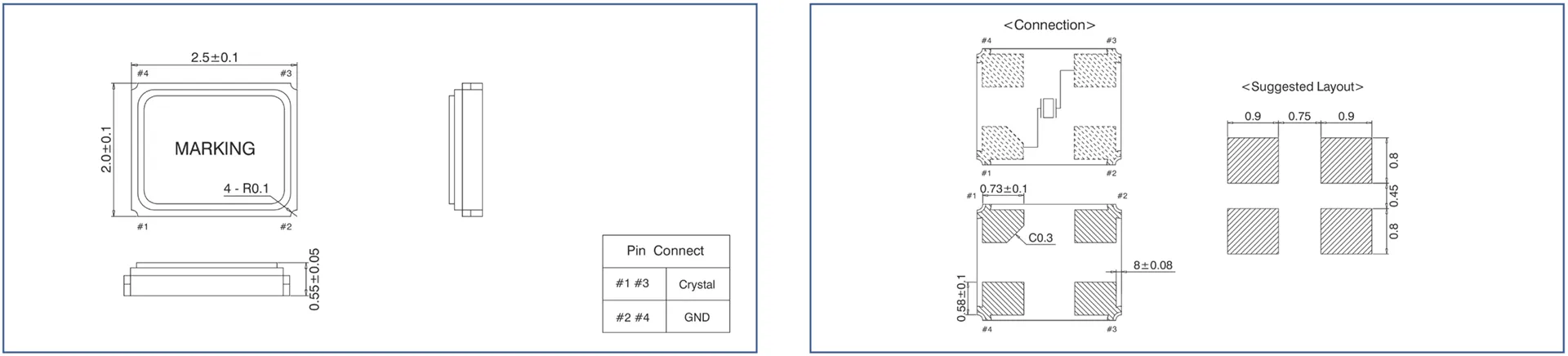

Dimensions of SX-2520

Dimensions of SX-2520

SEAM Sealed MHz Crystals SX-2520 Series

SX25Y050000DK1T001

50.0MHz 20PF ±20PPM

Know More 

SX25Y013560DI1S001

13.56MHz 18PF ±20PPM

Know More 

SX25Y012000FI1T001

12.0MHz 18PF ±30PPM

Know More 

SX25Y040000SF1T001

40.0MHz 15PF -15~5ppm

Know More 

SX25Y040000BF1T004

40.0MHz 15PF ±10PPM

Know More 

SX25Y012000F81T001

12.0MHz 8PF ±10PPM

Know More 

SX25Y032000D91T001

32.0MHz 9PF ±20PPM

Know More 

SX25Y024000DF1T001

24.0MHz 15PF ±20PPM

Know More 

SX25Y022000BF1T001

22.0MHz 15PF ±10PPM

Know More 

SX25Y037400DG1T001

37.4MHz 16PF ±20PPM

Know More 

SX25Y050000BK1T001

50.0MHz 20PF ±10PPM

Know More 

SX25Y019200B81T001

19.2MHz 8PF ±10PPM

Know More 

