CX-1008 Quartz Blank MHz Crystal | TKD

The TKD CX-1008 series is a quartz-blank based MHz crystal in an ultra-compact 1.0 × 0.8 mm package, providing a stable frequency reference in the smallest footprint. It is ideal for wearables, IoT sensors, TWS earbuds and space-constrained wireless devices.

Specification of CX-1008

Technical Specifications	CX-1008
Output Frequency	48~96MHz
Frequency Tolerance (at 25℃)	±20ppm
Frequency Stability (Within Operating Temperature Range)	±30ppm
Operating Temperature Range	-30~85℃
Shunt Capacitance (C0)	3.0pF Max.
Drive Level	10μW(100μW Max.)
Load Capacitance	8pF,10pF,12pF
Storage Temperature	-40~85℃

Frequency	ESR
48MHz ≤ F0 ≤ 52MHz	100Ω Max.

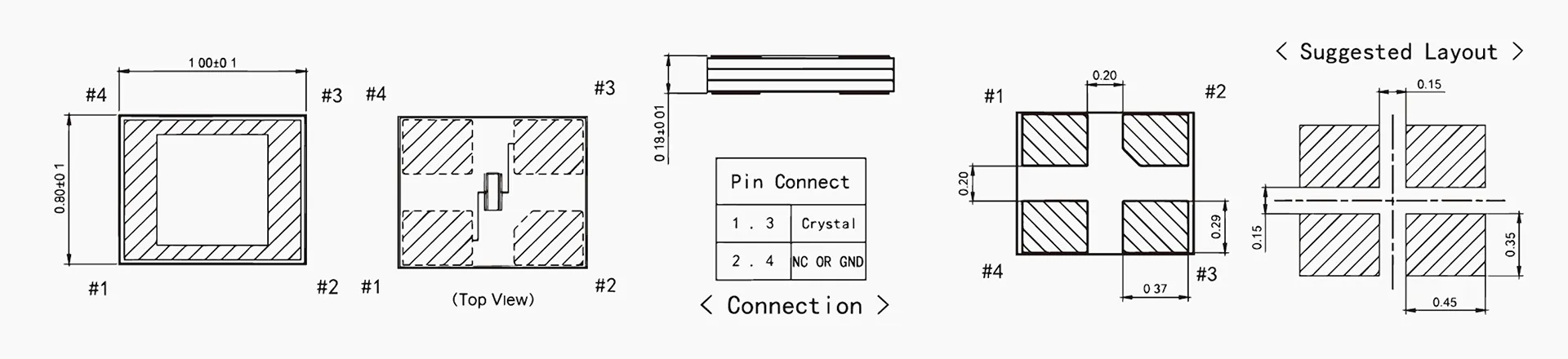

Dimensions of CX-1008

Dimensions of CX-1008

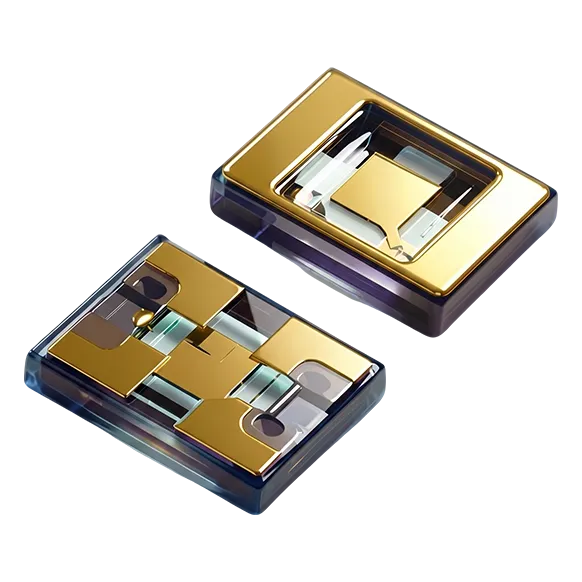

Quartz Blanks MHz Crystals CX-1008 Series

CX10U076800D31T001

76.8MHz 9.9PF ±20PPM ±20@-30~85℃
