SX-3225 SEAM-Sealed SMD MHz Crystal | TKD

The TKD SX-3225 series is a seam-sealed MHz crystal in a 3.2 × 2.5 mm package, offering a robust and economical frequency reference. It is ideal for microcontrollers, set-top boxes, networking, industrial and consumer applications.

Specification of SX-3225

Technical Specifications		SX-1008/SX-1210/SX-1612/SX-2016/SX-2520/SX-3225
Output Frequency	SX-1008	37.4~96MHz
	SX-1210	24~156.25MHz
	SX-1612	24~96MHz
	SX-2016	16~96MHz
	SX-2520	12~54MHz
	SX-3225	8~54MHz
Frequency Tolerance (at 25℃)		±10ppm (Available)
Frequency Stability within Operating Temp. Range	SX-1008/SX-1210/SX-2016/SX-2520/SX-3225	±10ppm
Frequency Stability within Operating Temp. Range	SX-1612	±10ppm, ±15ppm (Available)
Operating Temperature Range		-40~+85℃ (Available)
Shunt Capacitance (C₀)		3.0pF Max.
Drive Level		100μW (Typical)
Load Capacitance		Series, 6pF, 8pF, 10pF, 12pF, 16pF (Available)
Aging Rate (per year, at 25℃)	SX-1008	±2 ppm/year Max.
Aging Rate (per year, at 25℃)	SX-1210/SX-1612/SX-2016/SX-2520/SX-3225	±3 ppm/year Max.
Storage Temperature Range	SX-1008	-40~+85℃
Storage Temperature Range	SX-1210/SX-1612/SX-2016/SX-2520/SX-3225	-40~+125℃

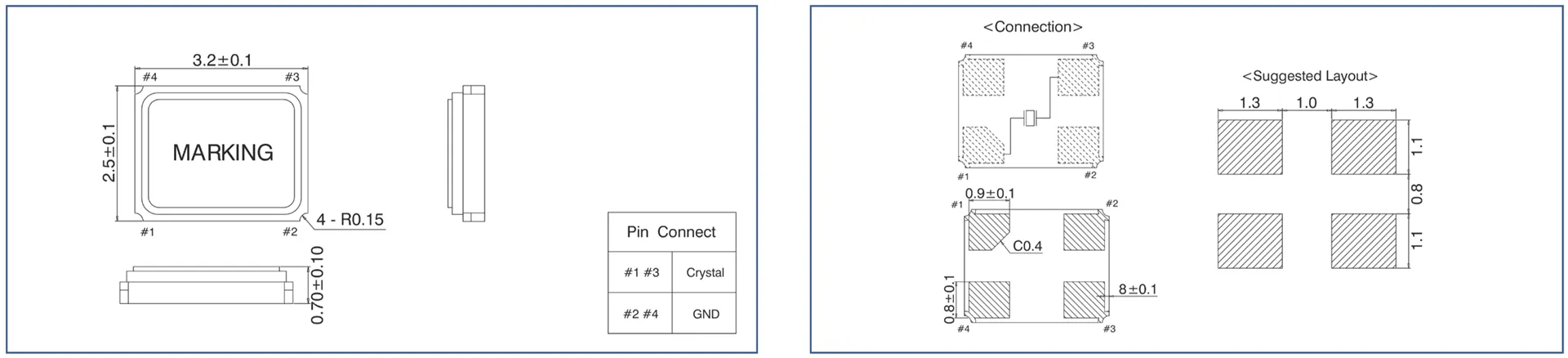

Dimensions of SX-3225

Dimensions of SX-3225

SEAM Sealed MHz Crystals SX-3225 Series

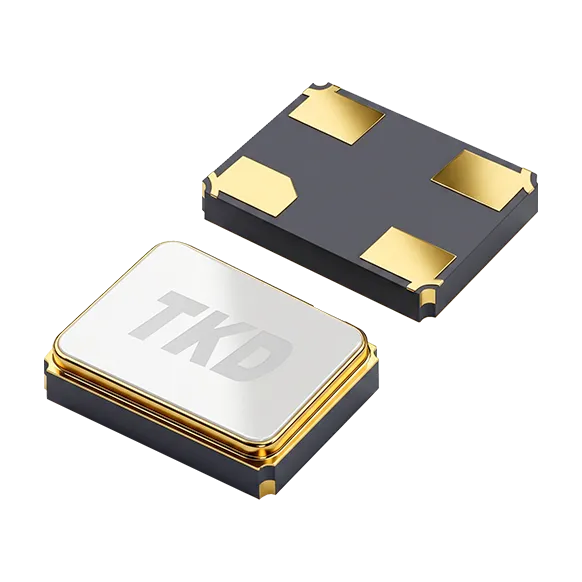

SX32Y048000B81T002

48.0MHz 8PF ±10PPM

Know More 

SX32Y025000BC1T007

25.0MHz 12PF ±10PPM

Know More 

SX32Y020480BK1S001

20.48MHz 20PF ±10PPM

Know More 

SX32Y016000B61T001

16.0MHz 6PF ±10PPM

Know More 

SX32Y008000BK1S002

8.0MHz 20PF ±10PPM

Know More 

SX32Y025000BA1T003

25.0MHz 10PF ±10PPM

Know More 

SX32Y026000B91T011

26.0MHz 9PF ±10PPM

Know More 

SX32Y016384DK1T001

16.384MHz 20PF ±20PPM

Know More 

SX32Y012000DA1T003

12.0MHz 10PF ±20PPM

Know More 

SX32Y048000BK1T001

48.0MHz 20PF ±10PPM

Know More 

SX32Y016000RC1T002

16.0MHz 12PF ±9PPM

Know More 

SX32Y026000R91T002

26.0MHz 9PF ±9PPM

Know More 

