SX-1612C Series Automotive Grade MHz Crystals | TKD

SX-1612C Series Automotive Grade MHz Crystals | TKD

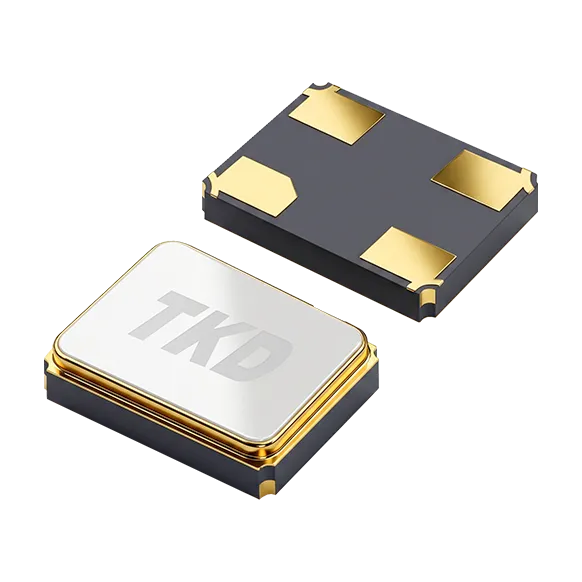

The TKD SX-1612C series is an automotive-grade seam-sealed MHz crystal in a 1.6 × 1.2 mm package, AEC-Q200 qualified for vehicle electronics. It provides stable frequency for ADAS, in-vehicle networking, infotainment and body control systems.

Specification of SX-1612C


Technical SpecificationsSX-1612C/SX-2016C/SX-2520C/SX-3225C
Output FrequencySX-1612C19.2~96MHz
SX-2016C16~96MHz
SX-2520C/SX-3225C8~54MHz
Frequency Tolerance (at 25℃)
±10 ppm (Available)
Freq. Stability (Operating Temp. Range)
±10 ppm (Available)
Operating Temperature Range
-40~+150℃ (Available)
Shunt Capacitance (C0)
3pF Max.
Drive Level
100μW (Typical)
Load Capacitance
6pF, 10pF, 12pF, 16pF (Available)
Aging Rate (per year, at 25℃)
±3 ppm/year Max.
Storage Temperature Range
-40~+125℃



Frequency RangeESR (Max.)
8MHz ≤ F₀ < 10MHz300Ω
10MHz ≤ F₀ < 15MHz150Ω
15MHz ≤ F₀ < 19.5MHz80Ω
19.5MHz ≤ F₀ < 27MHz60Ω
27MHz ≤ F₀ < 54MHz50Ω


Frequency Stability vs. Temperature Range


ppm / Temp.(℃)±10±15
-10~+60○○
-20~+70○○
-40~+85×△



ppm / Temp.(℃)±20±30±50±150
-40~+105△○○
-40~+150×××○


Legend:

○: Available

△: Available under certain conditions

×: Not available

Note: Not all option combinations are available.

Other specifications available upon request.

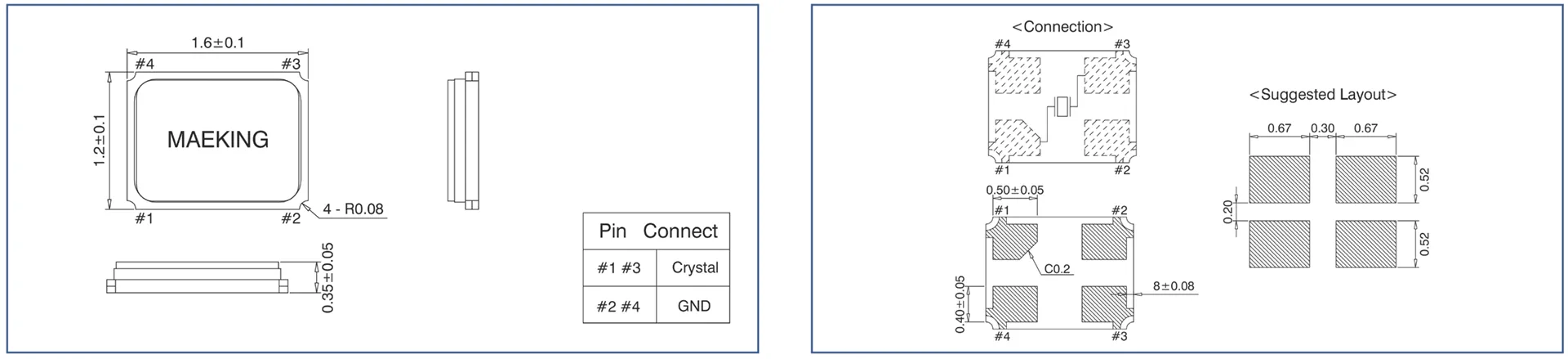

Dimensions of SX-1612C

Dimensions of SX-1612C

Automotive Grade MHz Crystals SX-1612C Series
