Name: TS8010
Brand: TKD Science and Technology Co., Ltd.

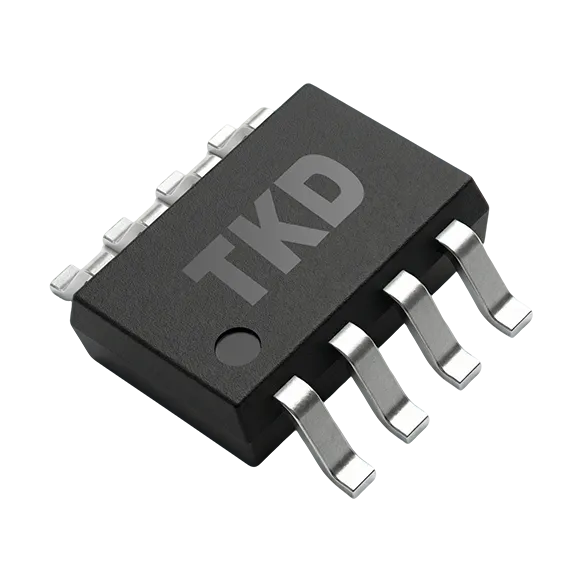

The TKD TS8010 series is a SOP8 real-time clock module with an integrated 32.768 kHz crystal, providing accurate timekeeping and calendar functions in a compact package. It is ideal for meters, industrial controls, IoT devices and consumer electronics.

Specification of TS8010

Frequency Characteristics
Parameter	Code	Condition	Min.	Typ.	Max.	Unit
Frequency Tolerance	Δf/f	Ta=25°C, VDD=3.0V	-	5±23*	-	ppm
Start-up Time	tSTA	Ta=25°C, VDD=1.8V	-	-	0.9	s
Start-up Time	tSTA	Ta=-40~85°C, VDD=1.8~5.5V	-	-	2.0	s

* Equivalent to ±1 minute monthly deviation

Current Consumption Characteristics
Parameter	Code	Condition		Min.	Typ.	Max.	Unit
Current Consumption	IDD1	FOE=GND FOUT=Hi-Z	VDD=5V	-	2.6	-	μA
	IDD2	FOE=GND FOUT=Hi-Z	VDD=3V	-	2.5	-
	IDD3	FOE=VDD FOUT=32.768kHz CL=0pF	VDD=5V	-	3.6	-
	IDD4	FOE=VDD FOUT=32.768kHz CL=0pF	VDD=3V	-	3.0	-
	IDD5	FOE=VDD FOUT=32.768kHz CL=30pF	VDD=5V	-	7.5	-
	IDD6	FOE=VDD FOUT=32.768kHz CL=30pF	VDD=3V	-	6.2	-
