SXT-2016 TSX Crystal | TKD

The TKD SXT-2016 series is a thermistor-embedded MHz crystal in a 2.0 × 1.6 mm package, combining a quartz resonator with a built-in thermistor for temperature monitoring. It is ideal for wearables, smart devices, IoT sensors and compact industrial electronics.

Specification of SXT-2016

Technical Specifications		SXT-1612/SXT-2016/SXT-2520
Output Frequency	SXT-1612	26~153.6MHz
	SXT-2016	19.2~55.2MHz
	SXT-2520	19.2MHz, 26MHz
Frequency Tolerance (at 25℃)		±10ppm (Available)
Frequency Stability (Within Operating Temp. Range)		±12ppm (Available)
Operating Temperature Range		-30~+85℃
Shunt Capacitance (C₀)		3pF Max.
Load Capacitance		7pF (Available)
Drive Level		100μW (Typical)
Aging Rate (per year, at 25℃)		±1 ppm/year Max.
Storage Temperature Range		-40~+85℃
Reflow Soldering Variation		±2ppm

○: Available △: Available under certain conditions ×: Not available

Note: Not all option combinations are available. Other specifications are available upon request.

Specifications are subject to change without notice.

Frequency Stability vs. Temperature Range
Temperature Range	Frequency Stability (ppm)
-30~+85	±12

○: Available △: Available under certain conditions ×: Not available

Note: Not all option combinations are available.

Other specifications are available upon request.

SXT-2016 ESR
Frequency	Resistance
19.2MHz ≤f_nom< 30MHz	80Ω Max.
30MHz ≤f_nom< 55.2MHz	60Ω Max.

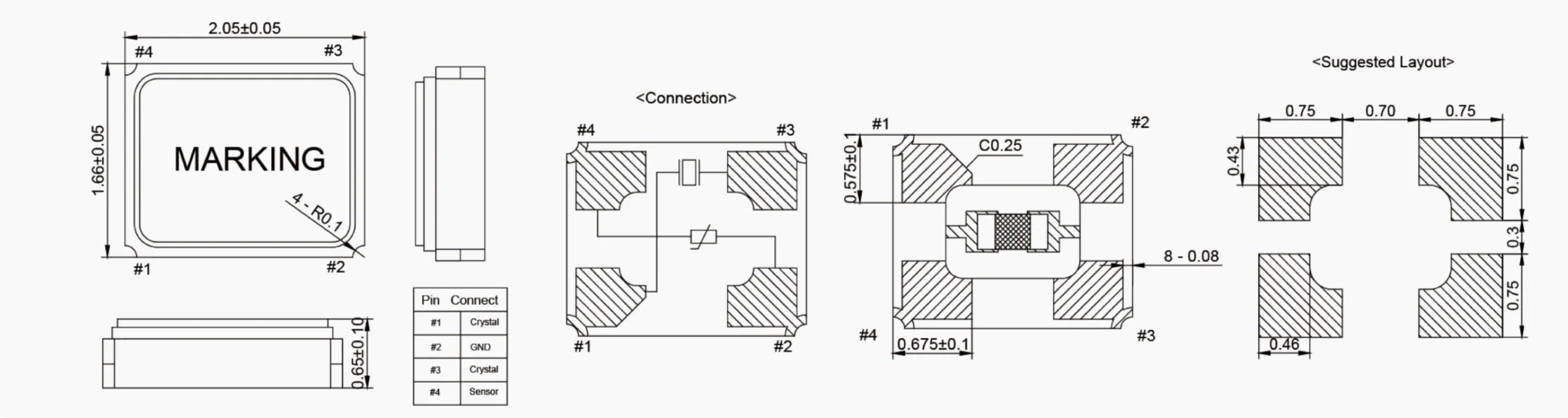

Dimensions of SXT-2016

Dimensions of SXT-2016

Standard TSX Crystals SXT-2016 Series

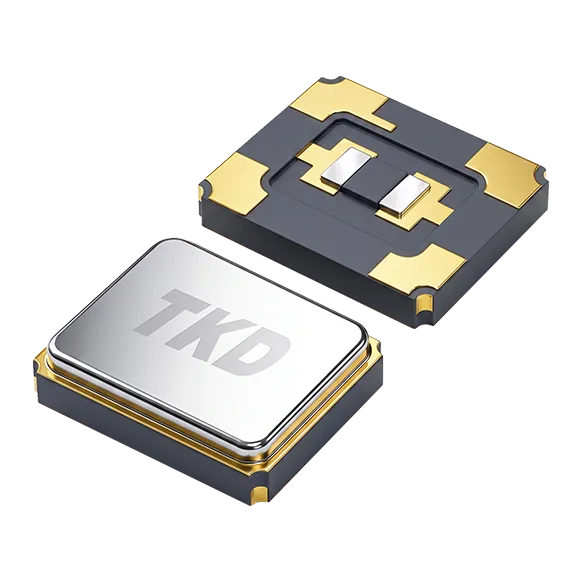

SXT20A026000B81T001

26.0MHz 8PF ±10PPM

Know More 

SXT20A019200B71T001

19.2MHz 7PF ±10PPM

Know More 

SXT20A026000B91T001

26.0MHz 9PF ±10PPM

Know More 

SXT20A019200B71T002

19.2MHz 7PF ±10PPM

Know More 

SXT20A026000B81T006

26.0MHz 8PF ±10PPM

Know More 

SXT20A019200B71T003

19.2MHz 8PF ±10PPM

Know More 

SXT20A038400B71T001

38.4MHz 7PF ±10PPM

Know More 

SXT20A026000B71T001

26.0MHz 7PF ±10PPM

Know More 

SXT20A026000B81T002

26.0MHz 8PF ±10PPM

Know More 

XT20A019200B71T004

S19.2MHz 7PF ±10PPM

Know More 

SXT20A052000B91T001

52.0MHz 9PF ±10PPM

Know More 

SXT20A026000B71T002

26.0MHz 7PF ±10PPM

Know More 

