SX-3225C Automotive-Grade SMD MHz Crystal | TKD

The TKD SX-3225C series is an automotive-grade seam-sealed MHz crystal in a 3.2 × 2.5 mm package, qualified to AEC-Q200 for demanding automotive applications. It offers stable frequency for engine control, ADAS, telematics and infotainment systems.

Specification of SX-3225C

Technical Specifications		SX-1612C/SX-2016C/SX-2520C/SX-3225C
Output Frequency	SX-1612C	19.2~96MHz
	SX-2016C	16~96MHz
	SX-2520C/SX-3225C	8~54MHz
Frequency Tolerance (at 25℃)		±10 ppm (Available)
Freq. Stability (Operating Temp. Range)		±10 ppm (Available)
Operating Temperature Range		-40~+150℃ (Available)
Shunt Capacitance (C0)		3pF Max.
Drive Level		100μW (Typical)
Load Capacitance		6pF, 10pF, 12pF, 16pF (Available)
Aging Rate (per year, at 25℃)		±3 ppm/year Max.
Storage Temperature Range		-40~+125℃

Frequency Range	ESR (Max.)
8MHz ≤ F₀ < 10MHz	300Ω
10MHz ≤ F₀ < 15MHz	150Ω
15MHz ≤ F₀ < 19.5MHz	80Ω
19.5MHz ≤ F₀ < 27MHz	60Ω
27MHz ≤ F₀ < 54MHz	50Ω

Frequency Stability vs. Temperature Range

ppm / Temp.(℃)	±10	±15
-10~+60	○	○
-20~+70	○	○
-40~+85	×	△

ppm / Temp.(℃)	±20	±30	±50	±150
-40~+105	△	○	○
-40~+150	×	×	×	○

Legend:

○: Available

△: Available under certain conditions

×: Not available

Note: Not all option combinations are available.

Other specifications available upon request.

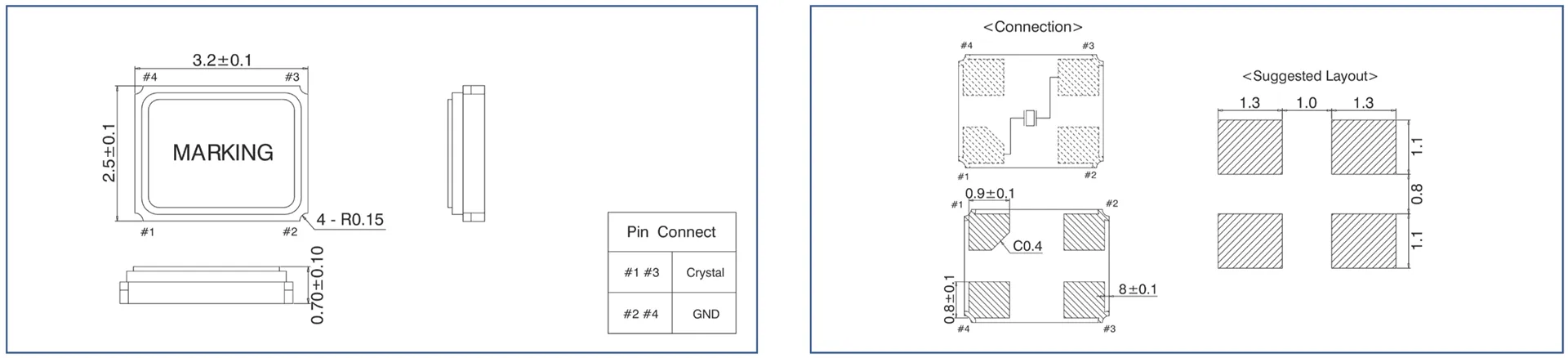

Dimensions of SX-3225C

Dimensions of SX-3225C

Automotive Grade MHz Crystals SX-3225C Series

SX32C008000D81T001

8.0MHz 8pF 20ppm

Know More 

SX32C008000D81T002

8.0MHz 8pF 20ppm

Know More 

SX32C008000BC1T001

8.0MHz 12pF 10ppm

Know More 

SX32C008000FC1T001

8.0MHz 12pF 30ppm

Know More 

SX32C008000DA1T001

8.0MHz 10pF 20ppm

Know More 

SX32C008000B81T001

8.0MHz 8pF 10ppm

Know More 

SX32C008000BC1T002

8.0MHz 12pF 10ppm

Know More 

SX32C008000DC1T001

8.0MHz 12pF 20ppm

Know More 

SX32C008000FK1T001

8.0MHz 20pF 30ppm

Know More 

SX32C008000D81T003

8.0MHz 8pF 20ppm

Know More 

SX32C008000BC1T003

8.0MHz 12pF 10ppm

Know More 

SX32C008000BC1T004

8.0MHz 12pF 10ppm

Know More 

