Name: 1411
Brand: TKD Science and Technology Co., Ltd.

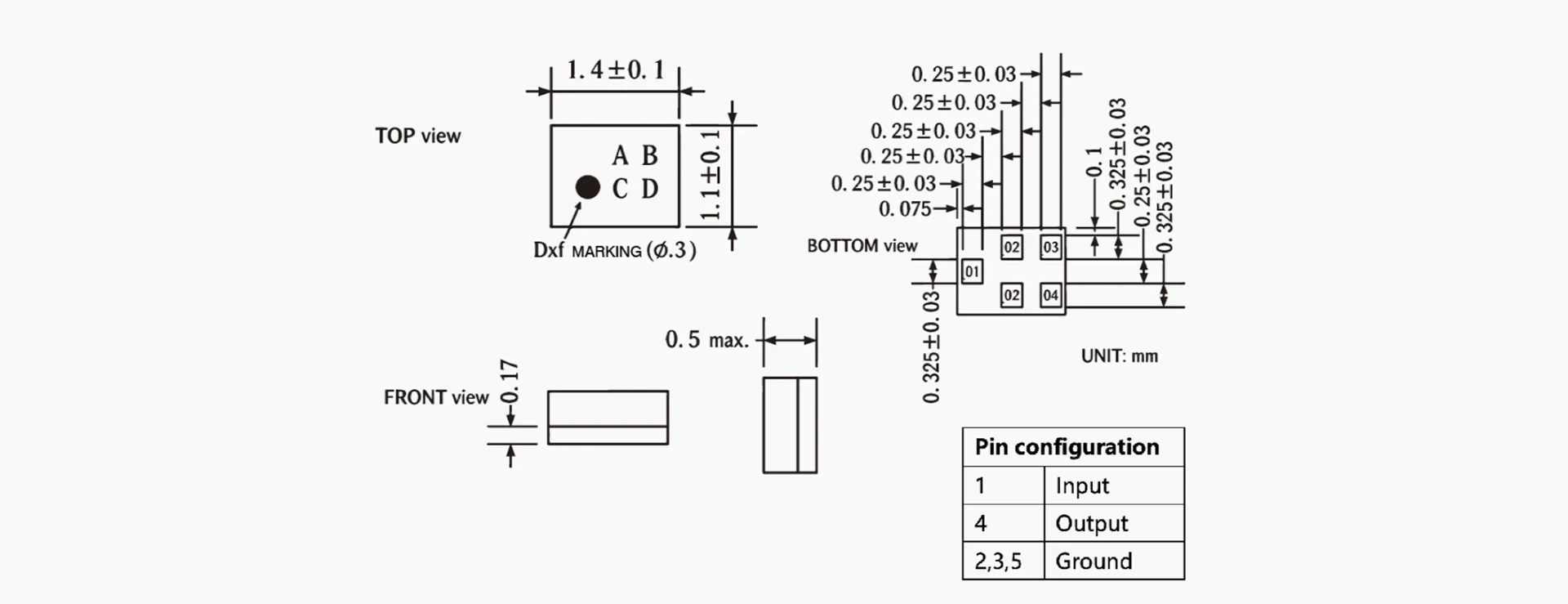

The TKD SAW Filter 1411 series is a surface acoustic wave filter in a 1.4 × 1.1 mm package, providing precise frequency selection with low loss. It is well suited to RF front-end filtering in smartphones, Wi-Fi modules, GPS receivers and IoT devices.

Specification of 1411

Type	Part Number	Band	Freq. Range	Package	Power/dBm
Consumer Grade	SF2G14060MAA1109	B1_RX	2110~2170MHz	1109	10
	SF1G96060MAA1109	B2_RX	1930~1990MHz	1109	10
	SF1G84075MAA1109	B3_RX	1805~1880MHz	1109	10
	SF881M025MAA1109	B5_RX	869~894MHz	1109	10
	SF2G65070MAA1109	B7_RX	2620~2690MHz	1109	10
	SF942M035MAA1109	B8_RX	925~960MHz	1109	10
	SF2G01015MAA1109	B34_RX	2010~2025MHz	1109	10
	SF1G90040MAA1109	B39_RX	1880~1920MHz	1109	10
	SF2G35100MAA1109	B40_RX	2300~2400MHz	1109	10
	SF2G59160MBA1109	B41_160MHz_RX	2515~2675MHz	1109	10
	SF2G59194MFA1109	B41_194MHz_RX	2496~2690MHz	1109	10
	SF1G90040MAA1411	B39_TX	1880~1920MHz	1411	30
	SF2G35100MBA1109	B40_TX	2300~2400MHz	1109	30
	SF2G35100MBA1411	B40_TX	2300~2400MHz	1411	30
	SF2G60100MAA1411	B41_100MHZ_TX	2555~2655MHz	1411	30
	SF2G59120MNA1109	B41_120MHZ_TX	2535~2655MHz	1109	30
	SF2G59120MNA1109	B41_120MHZ_TX	2535~2655MHz	1109	30
	SF2G59194MFA1411	B41_194MHZ_TX	2496~2690MHz	1411	30
	SD1G95060MBA1814	B1_DPX	1920~1980MHz/2110~2170MHz	1814	31
	SD1G95060MBA1612	B1_Dpx	1920~1980MHz/2110~2170MHz	1612	31
	SD836M025MBA1814	B5_DPX	824~849MHz/869~894MHz	1814	30
	SD836M025MBA1612	B5_DPX	824~849MHz/869~894MHz	1612	30
	SD2G53070MBA1814	B7_DPX	2500~2570MHz/2620~2690MHz	1814	29
	SD2G53070MBA1612	B7_DPX	2500~2570MHz/2620~2690MHz	1612	29
	SD898M035MBB1814	B8_DPX	880~915MHz/925~960MHz	1814	29
	SD806M030MBA1814	B20_Dpx	832~862MHz/791~821MHz	1814	29
	SD718M030MAA1814	B28A_Dpx	703~733MHz/758~788MHz	1814	29
	QGSA733MAASP3	B28B_Dpx	718~748MHz/773~803MHz	1814	29
	SF1G56040MGA1109	GPS	1561~1601MHz	1109	13
	SF1G56040MGB1411	GPS	1561~1601MHz	1411	13
	SF2G45082MFA1411	2.4G_WIFI	2401~2483MHz	1411	25
	SF2G45082MFA1109	2.4G_WIFI	2401~2483MHz	1109	25
	SD1G17021MBA1511	GPS_L5+L1	1166~1187MHz/1574~1606MHz	1511	30
	SF1G03040MAA3030	L Band	1010~1050MHz	3030	32
Mobile Micro DAS	SF896M015MAA1411	B8(15MHZ)_RX	889~904MHz	1411	30
	SF941M030MAA1411	B8(15MHZ)_TX	934~949MHz	1411	30
	SF1G90030MBA1411	B39(30MHZ)_TRX	1885~1915MHz	1411	30
	SF1G90030MBA1411	B39(30MHZ)_TRX	1885~1915MHz	1411	30
	SF2G59160MEB1411	B41(160MHZ)_TRX	2515~2675MHz	1411	32
	SD919M015MAA1814	B8(15MHZ)_DPX	934~949MHz/889~904MHz	1814	29
