Features of SX32Y024000B91T12G
1. Standard 24 MHz High-Frequency Reference
24 MHz is one of the most widely used high-frequency clock references in digital systems, processor buses, and communication interfaces, with extremely broad compatibility.
2. High Frequency Tolerance (±10 ppm)
Exceptional initial accuracy, meeting the stringent requirements of most communication, timing, and industrial control devices.
3. Low ESR (≤40 Ω)
Low equivalent series resistance ensures easy oscillation, simple drive circuit design, and broad compatibility.
4. Low Drive Level (≤100 μW)
Extremely low power consumption, ideal for battery-powered portable devices.
5. Low Annual Aging (±3 ppm/year)
Outstanding long-term frequency stability, reducing the need for periodic calibration and lowering system maintenance costs.

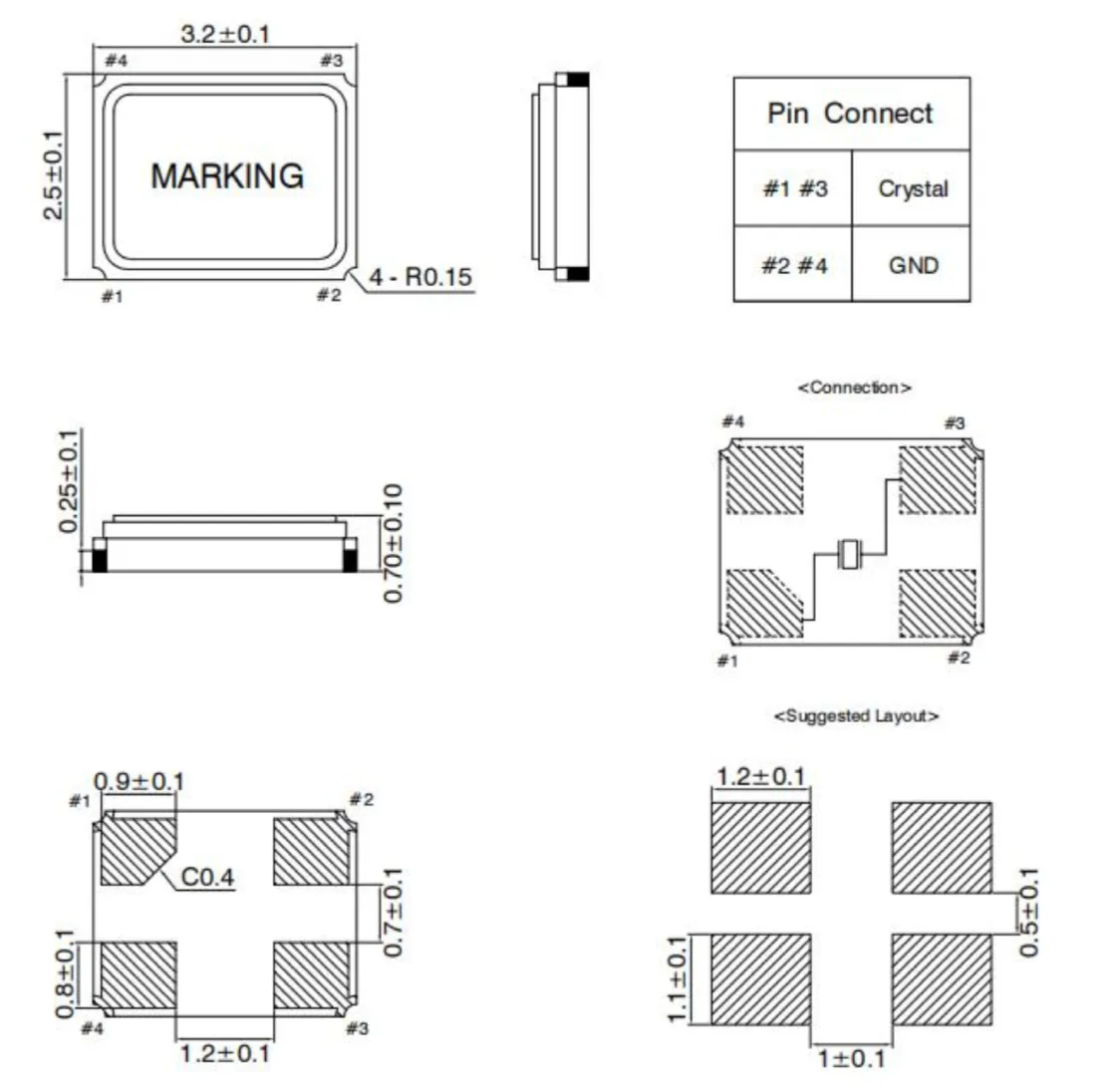

6. Miniature SX-3225 Package (3.2×2.5mm)
Compact form factor, suitable for space-constrained PCB layouts, supporting JEDEC standard reflow soldering.
7. Wide Operating Temperature Range (-40~85℃)
Covers the full industrial temperature range, suitable for harsh environments such as automotive electronics and industrial control.
8. Industry Applications
With its 24 MHz standard high-frequency clock, ±10 ppm high accuracy, low ESR (≤40 Ω), ultra-low drive level, SX-3225 miniature package, -40~85℃ wide operating temperature range, and 14 rigorous reliability tests, the SX32Y024000B91T12G is widely used in consumer electronics, communication equipment, automotive electronics, industrial control, IoT terminals, smart meters, and medical devices that require high-frequency stable clock references.
