1. 200 MHz Ultra-High Frequency Reference
200 MHz is one of the most widely used high-frequency clock references in high-speed digital systems, communication base stations, and data centers, with broad compatibility and direct drive capability for FPGAs/ASICs.
2. LVDS Differential Output (OUT/OUTN)
Low-voltage differential signaling provides lent common-mode noise immunity and signal integrity, ideal for high-speed, long-distance transmission applications.
3. Ultra-Low Jitter (50 fs-rms, 12kHz~20MHz)
Extremely low phase noise and jitter ensure high-purity clock signals, meeting the stringent jitter requirements of 5G base stations and high-speed serial links.
4. Wide Operating Temperature Range (-40~85℃)
Covers the full industrial temperature range, suitable for harsh environments such as automotive electronics, industrial control, and outdoor communication equipment.
5.Standby Function
Supports OE pin control for start/stop, with standby current of only 30 μA, effectively reducing system power consumption in standby mode — ideal for battery-powered and energy-saving devices.
6. Industry Applications
With its 200 MHz ultra-high frequency clock, LVDS differential output with ultra-low jitter (50 fs-rms), ±30 ppm frequency stability, -40~85℃ wide operating temperature range, low-power standby, and 15 rigorous reliability tests, the XO32F200000GBLE11G is widely used in 5G communication base stations, high-speed data center interfaces, automotive electronics, industrial control, IoT gateways, smart meters, and medical devices that require high-frequency, low-jitter differential clock references.

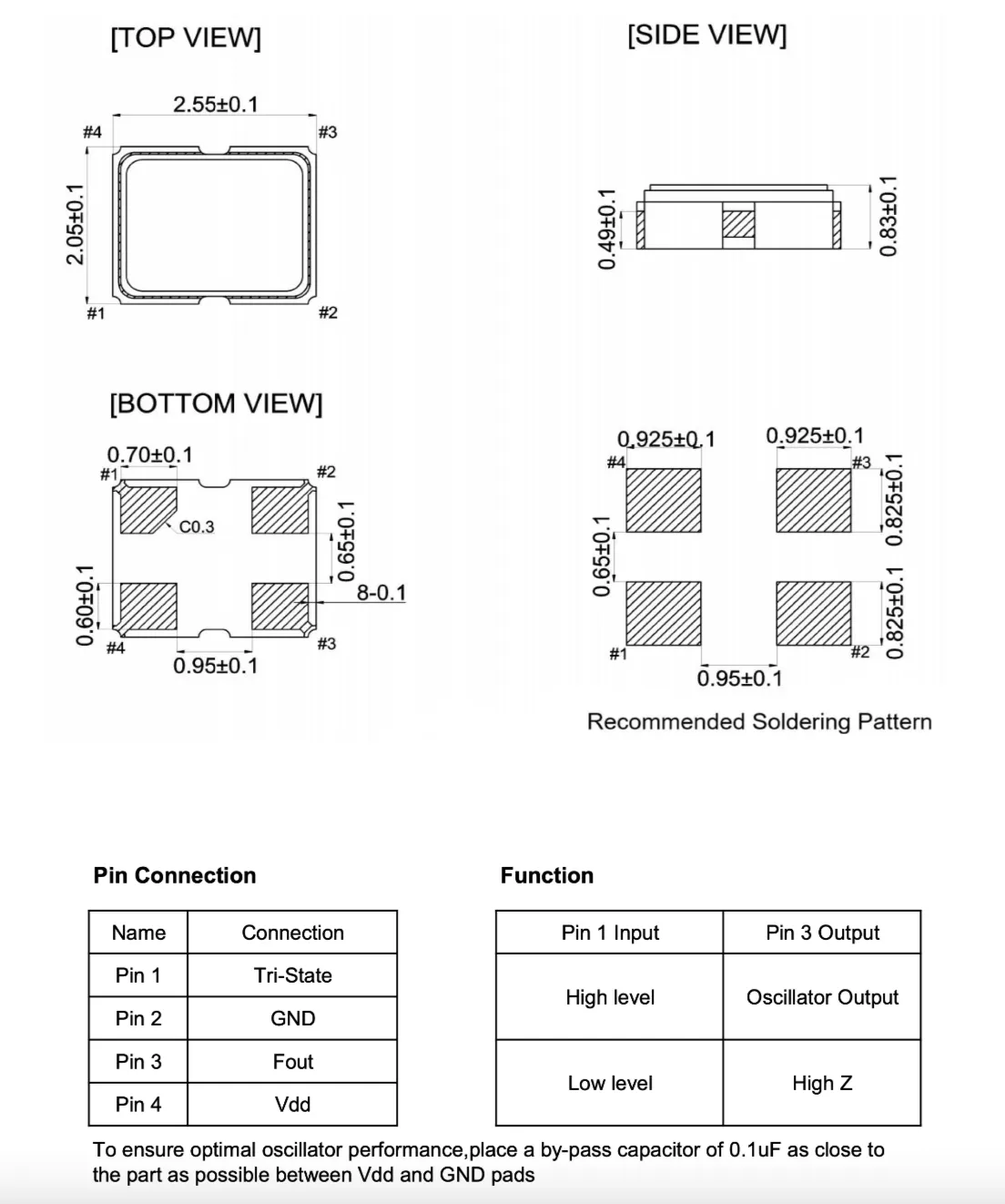

| Item | Parameters | Condition | Electrical Specifications | |||
| Min | Typ | Max | Units | |||
| 1 | Nominal Frequency | 24.000000 | MHz | |||
| 2 | Frequency Stability Overall | Note1 | -50 | 50 | ppm | |
| 3 | Operating Temperature Range | -40 | 85 | ℃ | ||
| 4 | Supply Voltage | Note2 | 1.6 | 2.8 | 3.63 | V |
| 5 | Current Consumption | Operating | 15 | mA | ||
| 6 | Output Waveform | CMOS | ||||
| 7 | Output Load | 15 | pF | |||
| 8 | Duty Cycle | 45 | 50 | 55 | % | |
| 9 | Output Rise/Fall Time | 8 | ns | |||
| 10 | High Output Voltage | Vdd-0.4 | V | |||
| 11 | Low Output Voltage | 0.4 | V | |||
| 12 | Enable | Vdd*70% | V | |||
| 13 | Disable | Vdd*30% | V | |||
| 14 | Aging | First year at 25±3℃ | -3 | 3 | ppm | |
| 15 | Start-up Time | 5 | ms | |||
| 16 | Storage Temperature | -55 | 125 | ℃ | ||
Note1 Frequency stability includes frequency tolerance@25±3℃, frequency stability vs. operating temperature range, voltage variance, load variance and first year aging
Note2 All parameters are measured at Typical supply voltage
