Name: XO25D032000GAHE11G
Brand: TKD Science and Technology Co., Ltd.

Features of XO25D032000GAHE11G

1. Standard 32 MHz High-Frequency Reference

32 MHz is widely used as a high-frequency clock reference in communication systems (such as GSM/CDMA base stations), digital systems, and processor buses, with extremely broad compatibility.

2. Wide Supply Voltage Range (1.60~3.63 V)

Supports a wide input voltage from 1.6 V to 3.63 V, compatible with mainstream system supply voltages such as 1.8 V and 3.3 V, offering flexible application.

3. Low Power Consumption (Only 15 mA)

Maintains low power consumption even at 32 MHz high-frequency output, ideal for battery-powered and portable devices.

4. Wide Operating Temperature Range (-40~85℃)

Covers the full industrial temperature range, suitable for environments such as automotive electronics and industrial control.

5. Fast Start-up Time (5 ms)

Reaches stable output within 5 ms after power-on, meeting fast system start-up requirements.

6. Industry Applications

With its 32 MHz standard high-frequency clock, wide supply voltage (1.6~3.63 V), low power consumption (15 mA), -40~85℃ wide operating temperature range, miniature 2520 package, Tri-State enable control, and 10 rigorous reliability tests, the XO25D032000GAHE11G is widely used in consumer electronics, communication equipment, automotive electronics, industrial control, IoT terminals, smart meters, and medical devices that require high-frequency stable clock references.

Specification of XO25D032000GAHE11G

Item	Parameters	Condition	Electrical Specifications
Item	Parameters	Condition	Min	Typ	Max	Units
1	Nominal Frequency		32.000000			MHz
2	Frequency Stability Overall	Note1	-50		50	ppm
3	Operating Temperature Range		-40		85	℃
4	Supply Voltage	Note2	1.6	2.8	3.63	V
5	Current Consumption	Operating			15	mA
6	Output Waveform		CMOS
7	Output Load		15			pF
8	Duty Cycle		45	50	55	%
9	Output Rise/Fall Time				8	ns
10	High Output Voltage		Vdd-0.4			V
11	Low Output Voltage				0.4	V
12	Enable		Vdd*70%			V
13	Disable				Vdd*30%	V
14	Aging	First year at 25±3℃	-3		3	ppm
15	Start-up Time				5	ms
16	Storage Temperature		-55		125	℃

Note1 Frequency stability includes frequency tolerance@25±3℃, frequency stability vs. operating temperature range, voltage variance, load variance and first year aging

Note2 All parameters are measured at Typical supply voltage

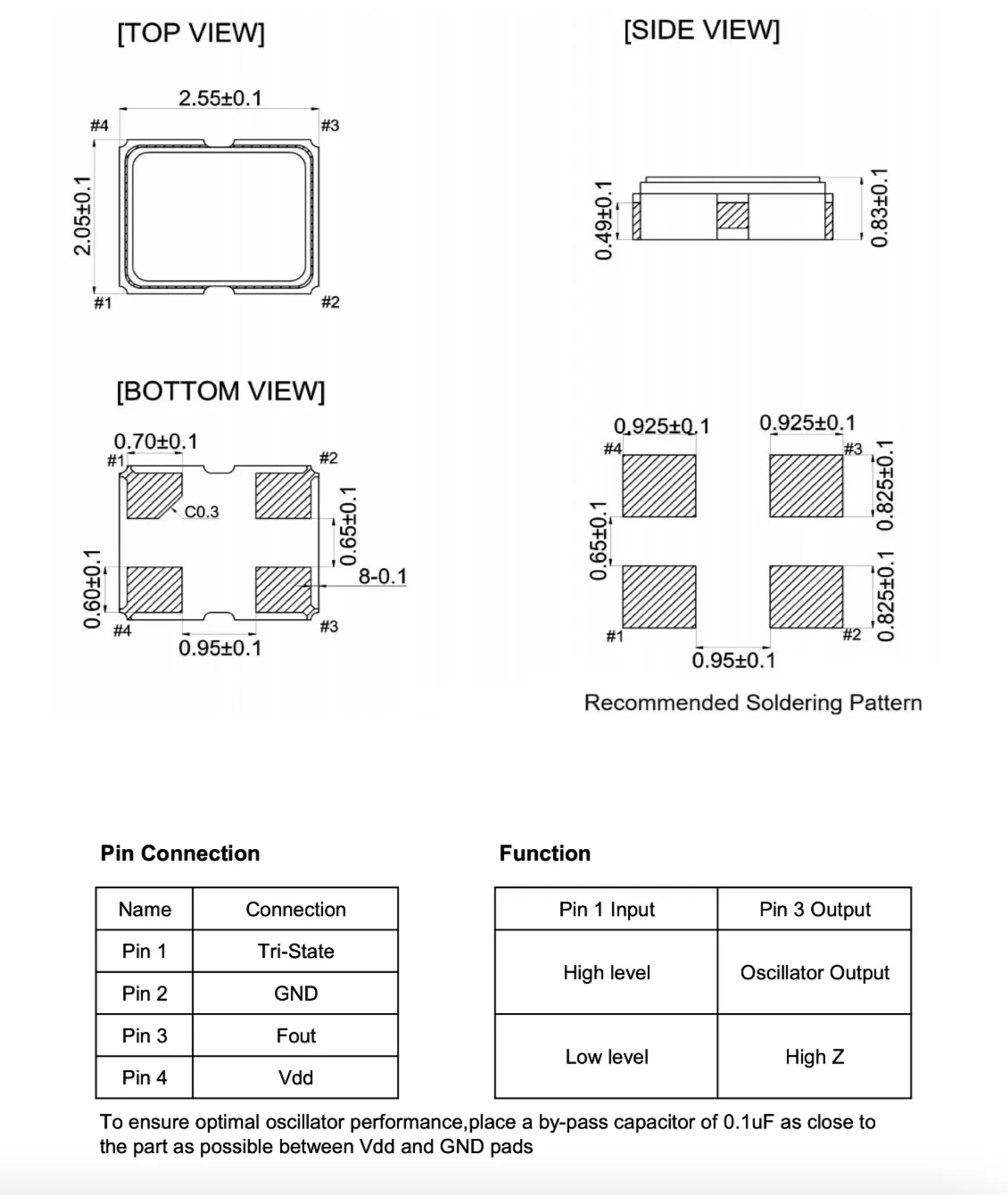

Dimensions of XO25D032000GAHE11G
