1. Standard 10 MHz High-Frequency Reference
10 MHz is one of the most widely used high-frequency clock references in digital systems, communication interfaces, and test & measurement equipment, with extremely broad compatibility, widely applied in various digital circuits and communication systems.
2. Wide Supply Voltage Range (1.60~3.63 V)
Supports a wide input voltage from 1.6 V to 3.63 V, compatible with mainstream system supply voltages such as 1.8 V and 3.3 V, offering flexible application.
3. Low Power Consumption (Only 15 mA)
Maintains low power consumption even at 10 MHz high-frequency output, ideal for battery-powered and portable devices.
4. Wide Operating Temperature Range (-40~85℃)
Covers the full industrial temperature range, suitable for environments such as automotive electronics and industrial control.
5. CMOS Output Waveform
Standard CMOS level output with broad compatibility, driving FPGAs, ASICs, MCUs and other digital devices.

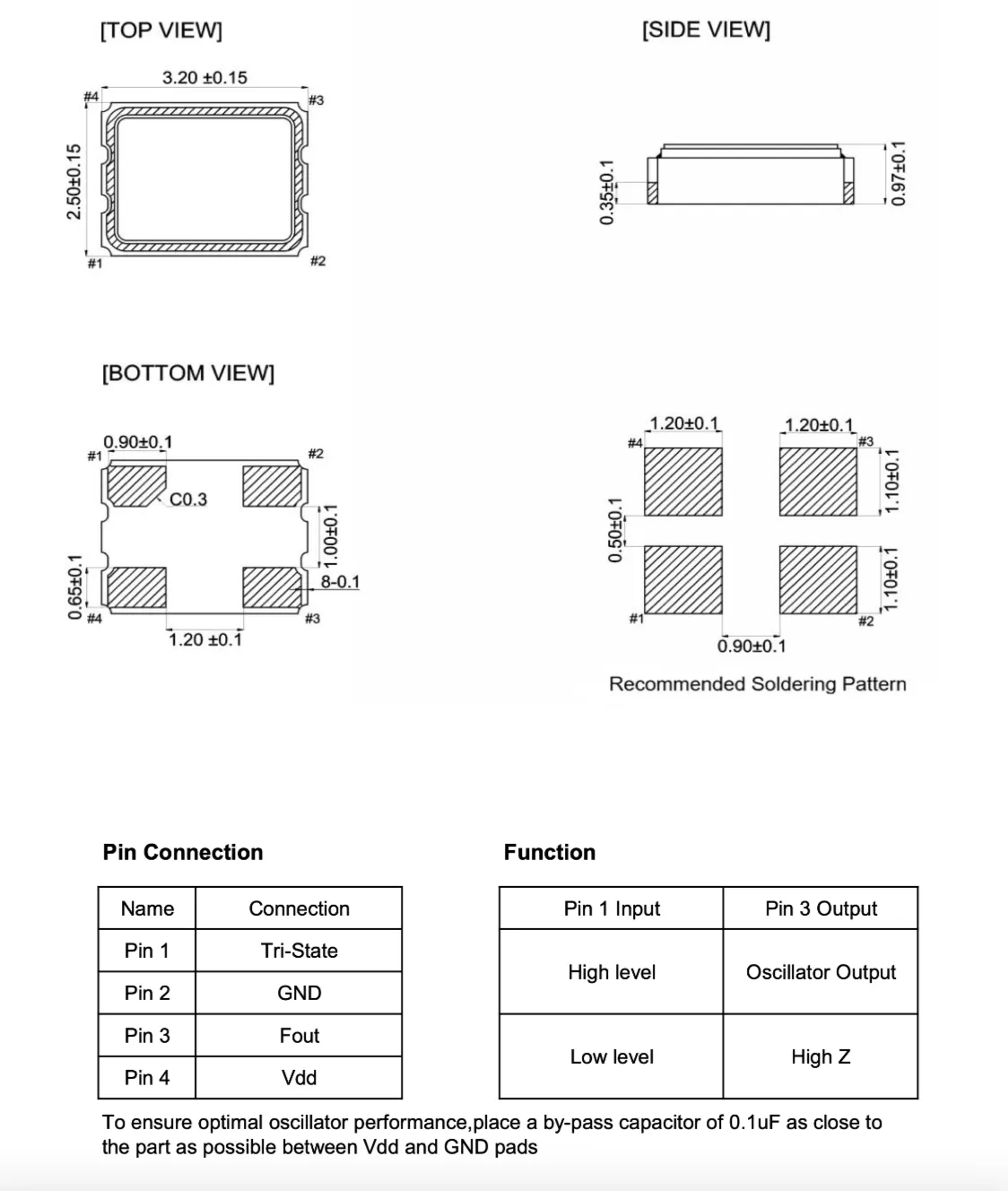

6. Miniature 3225 SMD Package
Compact 3.2×2.5mm form factor, suitable for space-constrained PCB layouts, supporting JEDEC standard reflow soldering.
7. Industry Applications
With its 10 MHz standard high-frequency clock, wide supply voltage (1.6~3.63 V), low power consumption (15 mA), -40~85℃ wide operating temperature range, miniature 3225 package, Tri-State enable control, and 10 rigorous reliability tests, the XO32D010000GAHE11G is widely used in consumer electronics, communication equipment, automotive electronics, industrial control, IoT terminals, smart meters, and medical devices that require high-frequency stable clock references.
| Item | Parameters | Condition | Electrical Specifications | |||
| Min | Typ | Max | Units | |||
| 1 | Nominal Frequency | 10.000000 | MHz | |||
| 2 | Frequency Stability Overall | Note1 | -50 | 50 | ppm | |
| 3 | Operating Temperature Range | -40 | 85 | ℃ | ||
| 4 | Supply Voltage | Note2 | 1.6 | 2.8 | 3.63 | V |
| 5 | Current Consumption | Operating | 15 | mA | ||
| 6 | Output Waveform | CMOS | ||||
| 7 | Output Load | 15 | pF | |||
| 8 | Duty Cycle | 45 | 50 | 55 | % | |
| 9 | Output Rise/Fall Time | 8 | ns | |||
| 10 | High Output Voltage | Vdd-0.4 | V | |||
| 11 | Low Output Voltage | 0.4 | V | |||
| 12 | Enable | Vdd*70% | V | |||
| 13 | Disable | Vdd*30% | V | |||
| 14 | Aging | First year at 25±3℃ | -3 | 3 | ppm | |
| 15 | Start-up Time | 5 | ms | |||
| 16 | Storage Temperature | -55 | 125 | ℃ | ||
Note1 Frequency stability includes frequency tolerance@25±3℃, frequency stability vs. operating temperature range, voltage variance, load variance and first year aging
Note2 All parameters are measured at Typical supply voltage
